Product Overview

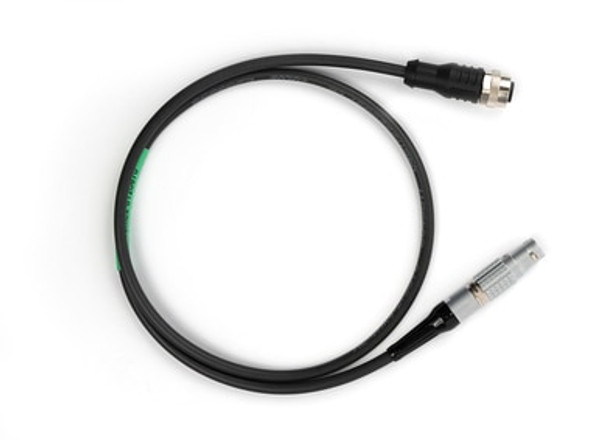

A cable adapter that has M12 female connector (A-coded 4-pin) in one end and Lemo male connector (F-series 6-pin) in the other end, designed to be used with any of the M12 male cable adapters (8120680, -682, -685, -695). Cable length 0.75 m. Rated for 50 V / 500 mA.
Application examples:
- for measuring output with R2 port in MC6 family calibrators from a temperature transmitter or switch, which has a 4-pin M12 connection
- CA02 + CA03: for connecting a non-Beamex Pt sensor to R2-port in MC6 family calibrators (see also kit CAKIT16)
See description for the entire CA Cable Adapter series here.
