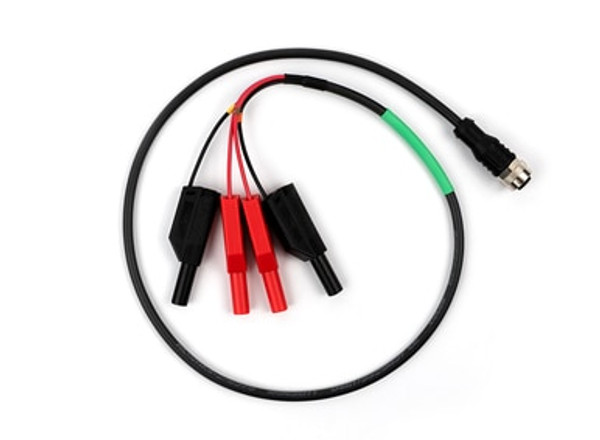

Cable Adapter CA01, M12 female to banana male

Write a Review
$95.00
Product code:
8120660
Connector type:
Banana plug
Connector type:
M12

USA Warehouse is out of stock, but the product can be shipped from our HQ warehouse. Contact us at beamex.inc@beamex.com

Product Overview

A cable adapter that has M12 female connector (A-coded 4-pin) in one end and 4 x stackable banana male plugs in the other end, designed to be used with any of the M12 male cables adapters (8120680, -682, -685, -695). Cable length 0.75 m. Rated for 50 V / 500 mA.

Application examples:

  • for measuring output from a transmitter or switch which has a 4-pin M12 connection
  • for connecting to Profibus PA transmitter (connect with banana plugs 1 and 3)
  • for connecting to Foundation Fieldbus transmitters (connect with banana plugs 1 for black and 2 for red)
  • CA01 + CA07: for connecting Beamex RPRT, IPRT and SIRT temperature sensors to MC2 / MC4 family calibrators or R1 terminals in MC6 family calibrators (see also kit CAKIT12)

See description for the entire CA Cable Adapter series here.
